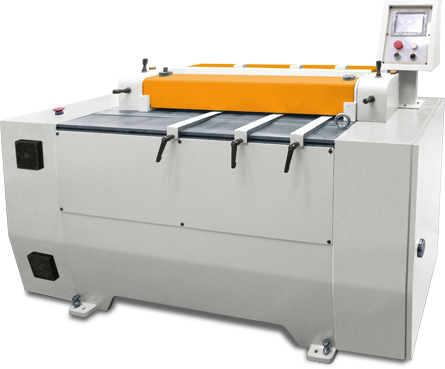

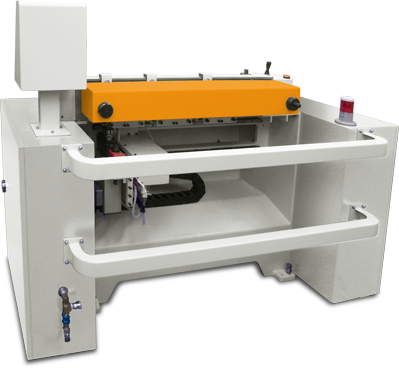

T5 CNC DOVETAIL MACHINE is designed into five models. Operators can choose or increase models according to demands. Four models are adjustable, able to change or design wood materials variously. Able to set the working speed, sizes of tenons & mortises, intervals by simple humanity operation interface. The files can be saved for repeated use.
NONSTOP WORKING DESIGN
After operators input programs, T5 will separate the working tables into left & right areas. When one area is working, operators can change materials at the other area. In this motion T5 doesn't need to stop & increases work efficiency. MAIN MOTOR
Good-performance motor imported from Italy. Durable & stable. The rotation speed is up to 24000RPM. PROCESSOR
Quality PLC made by Japan Mistubishi. All electric equipment conforms to CE standard. DEBUG SYSTEM
The computer stops automatically under perfect protection upon wrong operation or setting for fear of over stroke. Detailed error messages will be shown for operators to understand & debug. CIRCUIT DESIGN
The machine stops automatically under power failure or insufficient air pressure for fear of danger led by clamping cylinder.
|
Model 1
Dovetail joints on drawer with variable pitch.
Model 2
Alter dovetail joints on drawers.
Model 3
One side blind French dovetails.
Model 4
Parallel indents on drawers.
Model 5
Threadling dovetail joint on drawers with rectanular male indent.
|
