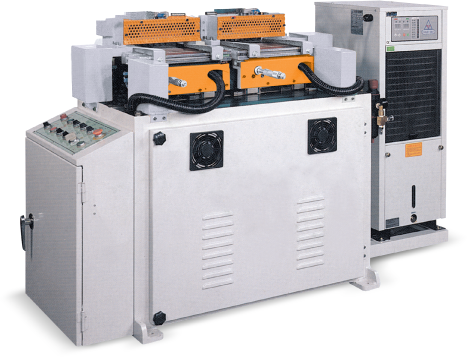

T4 DOUBLE TABLES MULTIPLE SPINDLES DOVETAIL MACHINE increases the output from T1. Double working tables. When table A works, operators can clamp materials at table B. After table A finishes, table B works automatically when operators get products. Double tables in rotation without time waste. One set of T4 compares favorable with two sets of T2. Special design for large output.

Centralized oiling system easy for maintenance. Convenient, fast time saving. Avoiding indirect injury to guideway in unobvious places.

Concealed super thin & powered cylinder.

Cooling cycle system keeps bearing lubricated under temperature control of cycle oil, maintaining the service life and function for lasting running.
Option N
Main Spindle in same direction. All cutters turn in same direction. If working stocks are plywood or unstable wood materials, we suggest users take this option for perfect tails.
MODEL
T4-8
T4-16
Main Motor
5HP x 2
7 1/2HP x 2
Blade Quantity
16pcs
32pcs
Cutter Speed
7500RPM
7500RPM
Working Range
3/8"~1"
3/8"~1"
Max Width of Working Piece
210mm ( 8 1/4" )
412mm ( 16 1/4" )
Net Weight
845kg
1025kg
Gross Weight
975kg
1155kg
Machine Size ( L x W x H )
910 x 1800 x 1220mm
910 x 2200 x 1220mm
Packing Size ( L x W x H )
990 x 1990 x 1350mm
1010 x 2300 x 1440mm
Various cutters to choose for hard wood and soft wood.
The design of main spindle box for high speed rotation and continuous working. Precision casting. Insistence on Japanese NSK bearings. The cooling cycle system keeps delicate gears & bearings from injury even under high speed rotation & long-time working. Main spindle box is always lubricated well. The quality & durability will stand the test of time.
