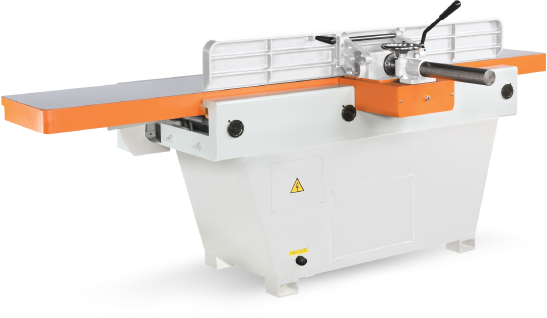

H3 is developed for European & American market. Precise table elevation & fence plate are easy to operate. The thickened table makes the whole structure firmer.
Optional brake system & spiral cutterhead.
Electric equipment conforms to CE standard.
Aluminum alloy casting fence plate is tough but light. Opertors can save labor when adjusting position.
Special design of angle adjustment is fast & convenient.
Table elevation is adjusted & fixed by only one handel, fast & convenient.
Electric cabinet is either hiden or juts out.

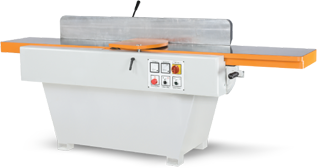

Option D

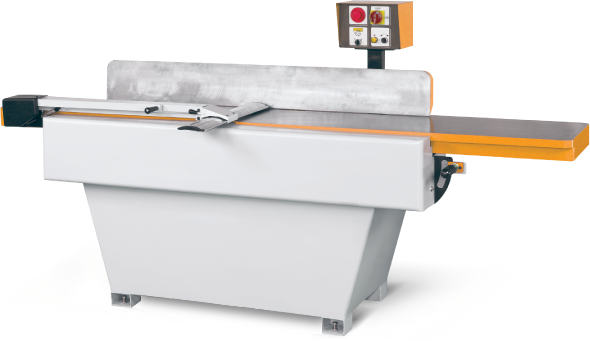

Option S
Electric cabinet hiden
Safety guard.
MODEL
H3-12
H3-16
H3-20
Table size
2220 x 310mm
2610 x 410 mm
2810 x 510 mm
Table height
880mm
880mm
880mm
Fence size
1600 x 200 mm
1600 x 200 mm
1600 x 200 mm
Cutterhead Speed
5000RPM
5000RPM
5000RPM
Cutterhead diameter
100mm ( 4 " )
100mm ( 4 " )
100mm ( 4 " )
Knife size
3 x 30 x 305 M/M
3 x 30 x 406 M/M
3 x 30 x 508 M/M
Max. cutting width
305mm ( 12" )
406mm ( 16" )
508mm(20")
Max. cutting depth
19mm
19mm
19mm
Fence tilting angle
45o~ 90o
45o~ 90o
45o~ 90o
Motor
5HP
7 1/2HP
10HP
Machine size(LxWxH)
1150 x 2220 x 1340 mm
1250 x 2610 x 1340 mm
1350 x 2810 x 1340 mm
Packing size(LxWxH)
800 x 2280 x 1150 mm
1050 x 2700 x 1150 mm
1150 x 2900 x 1150 mm
Net weight
700kg
920kg
1250kg
Gross weight
820kg
1100kg
1460kg
Aluminum alloy casting fence plate is tough but light. Opertors can save labor when adjusting position.
Special design of angle adjustment is fast & convenient.
