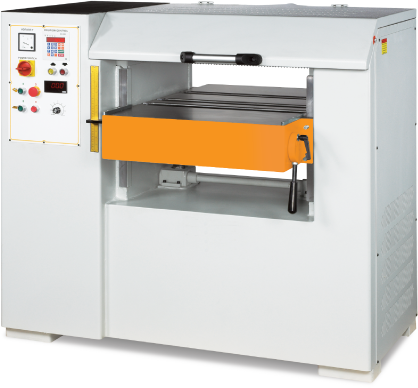

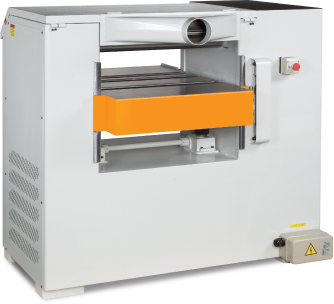

This model is for planing large wood materials. Three sets of table rollers make feed-in system powerful & smooth.
User who plan large wood materials will definitely be satisfied with this machine.
Three sets of table rollers.
(Two sets of motive power rollers)
CUTTER |
4T Plane cutter |
Standard |
4T Spiral cutter (14x14x2.0) |
Optional |
4T Spiral cutter (15x15x2.5) |
Optional |
6T Spiral cutter (14x14x2.0) |
Optional |
6T Spiral cutter (15x15x2.5) |
Optional |
4T Heavy duty spiral cutter (1.5x12x30) |
Optional |
6T Heavy duty spiral cutter (1.5x12x30) |
Optional |
MODEL |
A6-26 |
A6-30 |
Table area |
1016x788mm |
1067x889mm |
Cutterhead motor |
15HP |
20HP |
Cutterhead speed |
5200RPM |
5000RPM |
Feed-in motor |
2HP |
3HP |
Electronic motor |
1HP |
1HP |
Cutterhead diameter |
100mm(4") |
100mm(4") |
Blade quantity |
4 |
4 |
Feed-in roller |
70mmx2 |
70mmx2 |
Table roller |
60mmx3 |
60mmx3 |
Feed-in speed |
0 ~ 20M/min |
0 ~ 20 M/min |
Max. planing width |
26" |
30" |
Range of planing thickness |
3~300mm |
3~300mm |
Machine size(LxWxH) |
1016x1230x1295mm |
1067x1397x1295mm |
Packing size(LxWxH) |
1140x1540x1600mm |
1118x1448x1448mm |
Net weight |
1005kg |
1160kg |
Gross weight |
1110kg |
1310kg |
|
