PHOTO GALLERY

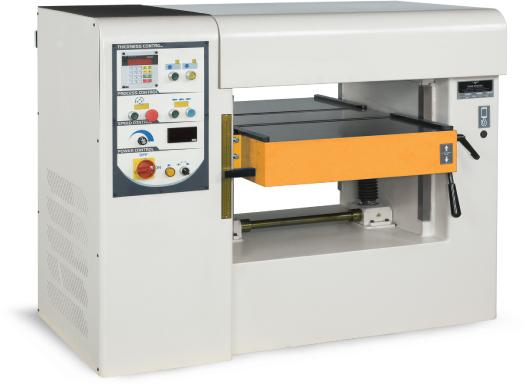

The body is formed by one-piece iron. Tough frame & Cutterhead with enlarged outer diameter make heavy duty planing easier.
Strict safety design prevents operators from touching cutters even when opening the upper cover. Noise eliminaiton cotton lowers down the sound.

Two pcs of output rollers; three pcs of table rollers.

CUTTER
4T Plane cutter
Standard
4T Spiral cutter (14x14x2.0)
Optional
4T Spiral cutter (15x15x2.5)
Optional
6T Spiral cutter (14x14x2.0)
Optional
6T Spiral cutter (15x15x2.5)
Optional
4T Heavy duty spiral cutter (1.5x12x30)
Optional
6T Heavy duty spiral cutter (1.5x12x30)
Optional
MODEL
A5-20
A5-24
Table area
1025x585mm
1025x695mm
Cutterhead motor
7 1/2HP
10HP
Cutterhead speed
4500RPM
4500RPM
Feed-in motor
2HP
2HP
Electronic motor
1HP
1HP
Cutterhead diameter
120mm
120mm
Blade quantity
4
4
Knife size
3x30x520m/m
3x30x630m/m
Feed-in roller
80mm
80mm
Output roller
80mm x 2
80mm x 2
Feed-in speed
0 ~ 20 m/min
0 ~ 20 m/min
Table roller
60mm x 3
60mm x 3
Max. planing width
520mm
630mm
Min. planing length
270mm
270mm
Max.planing thickness
300mm
300mm
Min. planing thickness
3mm
3mm
Dust hood dia.
5"
6"
Machine Size(LxWxH)
1155x1340x1130mm
1155x1450xx1130mm
Packing Size (LxWxH)
1255x1450x1250mm
1255x1560x1250mm
Net weight
890KG

980KG

Gross weight
1050KG
1100KG
Takedown inner dust hood.
Noise eliminaiton cotton lowers down the sound.
