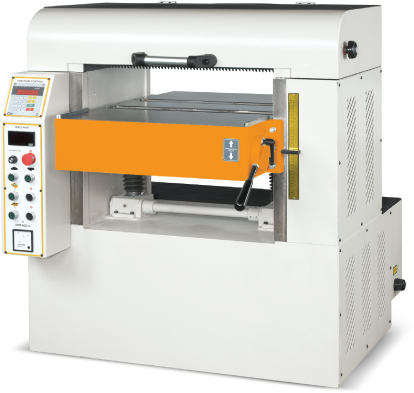

Casting column 、tough frame & cutterhead with enlarged outer diameter make heavy duty planing easier, stabler and safer. The design is popular in European market.
CUTTER |
4T Plane cutter |
Standard |
4T Spiral cutter (14x14x2.0) |
Optional |
4T Spiral cutter (15x15x2.5) |
Optional |
6T Spiral cutter (14x14x2.0) |
Optional |
6T Spiral cutter (15x15x2.5) |
Optional |
4T Heavy duty spiral cutter (1.5x12x30) |
Optional |
6T Heavy duty spiral cutter (1.5x12x30) |
Optional |
MODEL |
A4-20 |
A4-24 |
Table area |
890x635mm |
940x737mm |
Cutterhead motor |
7 1/2HP |
10HP |
Cutterhead speed |
5200RPM |
5200RPM |
Feed-in motor |
2HP |
2HP |
Electronic motor |
1HP |
1HP |
Cutterhead diameter |
4" |
4" |
Blade quantity |
4 |
4 |
Feed-in roller |
70mm |
70mm |
Table roller |
60mmx2 |
60mmx2 |
Feed-in speed |
0 ~ 20 M/min |
0 ~ 20 M/min |
Max. planing width |
510mm |
610mm |
Range of planing thickness |
3~300mm |
3~300mm |
Machine Size(LxWxH) |
990x1016x1220mm |
1067x1093x1220mm |
Packing Size (LxWxH) |
1110x1120x1450mm |
1190x1200x1450mm |
Net weight |
645kg |
745kg |
Gross weight |
735kg |
855kg |
|
|
