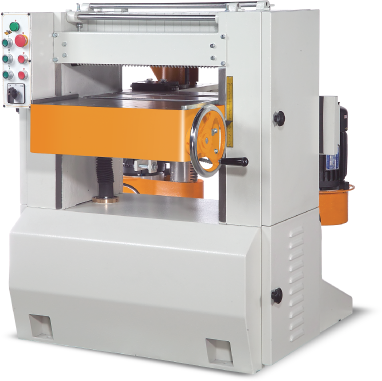

A3 extends from the design of A2. Two pcs of vertical shaped
cutterhead on output device. It works three sides-top, left & right at
one time.
CUTTER |
3T Plane cutter |
Standard |
4T Plane cutter |
Optional |
4T Spiral cutter (14x14x2.0) |
Optional |
4T Spiral cutter (15x15x2.5) |
Optional |
6T Spiral cutter (14x14x2.0) |
Optional |
6T Spiral cutter (15x15x2.5) |
Optional |
4T Heavy duty spiral cutter (1.5x12x30) |
Optional |
6T Heavy duty spiral cutter (1.5x12x30) |
Optional |
MODEL |
A3-20
|
PLANER |
MOULD |
Table Area |
970x540mm |
Max. Cutter Dia. |
127mm(5'' ) |
Cutterhead Dia. |
80mm |
Cutter Dia. |
30mm |
Cutter Motor |
5HP |
Speed |
8200RPM |
Cutter Speed |
5200RPM |
Motor |
3HPx2 |
Feed-in Motor |
2HP |
Max. Width |
510m |
Blade quantity |
3 |
Min. Width |
35mm |
Feed-in Rollers |
70mm |
Max. Thickness |
127mm |
Table Rollers |
60mm Min. |
Min. Thickness |
3.2mm |
Range of Feed-in Speed |
6&12 M/min |
|
|
Max. Planing Width |
510mm |
|
|
Range of Planing Thickness |
3.2-127mm |
|
|
Machine Size(LxWxH) |
1190x1060x1210mm |
|
|
Packing Size(LxWxH) |
1290x1160x1310mm |
|
|
Net Weight |
760kg |
|
|
Gross Weight |
870kg |
|
|
|
|
