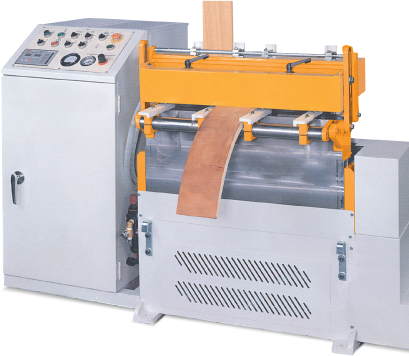

T3 MULTIPLE SPINDLES DOVETAIL MACHINE contains all the advanges of T1, but changes the clamp device of T1. In addition to processing plane wood materials, the clamp device can adjust the angle for curved woods. Available for various curved woods.
Option N
Main Spindle in same direction. All cutters turn in same direction. If working stocks are plywood or unstable wood materials, we suggest users take this option for perfect tails.
MODEL
T3-8
T3-16
 T3-24
Main Motor
5 HP
7 1/2 HP
 10HP
Blade Quantity
8pcs
16pcs
 24pcs
Cutter Speed
7500RPM
7500RPM
 7500RPM
Working Range
3/8"~1"
3/8"~1"
 3/8"~1"
Max Width of Working Piece
210mm ( 8 1/4" )
412mm ( 16 1/4" )
 616mm ( 24 1/4" )
Net Weight
680kg
715kg
 780kg
Gross Weight
765kg
810kg
 890kg
Machine Size ( L x W x H )
860 x 1450 x 1200mm
860 x 1520 x 1200mm
 860 x 1720 x 1200mm
Packing Size ( L x W x H )
960 x 1550 x 1420mm
960 x 1620 x 1420mm
 1110 x 1810 x 1350mm
Various cutters to choose for hard wood and soft wood.
The design of main spindle box for high speed rotation and continuous working. Precision casting. Insistence on Japanese NSK bearings. The cooling cycle system keeps delicate gears & bearings from injury even under high speed rotation & long-time working. Main spindle box is always lubricated well. The quality & durability will stand the test of time.
Cooling cycle system keeps bearing lubricated under temperature control of cycle oil, maintaining the service life and function for lasting running.
