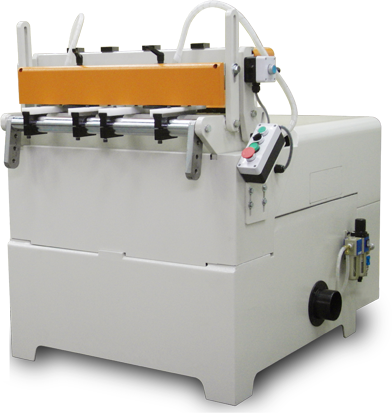

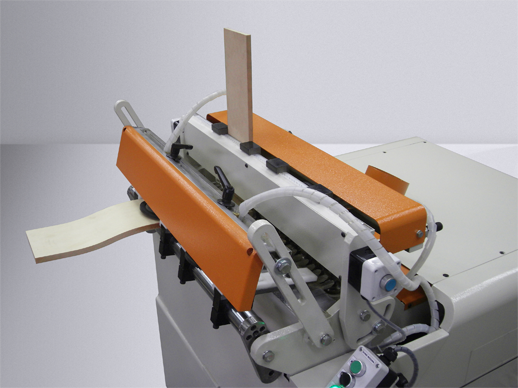

T2 HIGH SPEED MULTIPLE SPINDLES DOVETAIL MACHINE. Good for wood materials of poor quality. 16000 RPM. Compare favorable with single spindle dovetail machine. The fastest model in the market. Smooth surface of finished tenons. In addition to processing plane wood materials, the clamp system adjusts the angle according to wood curve. T2 is able to process wood material no matter how curved it is.
MODEL
T2-24
Main Motor
3hp/5hp
Blade Quantity
12pcs
Cutter Speed
16000RPM
Working Range
3/8"~1"
Max Width of Working Piece
615mm ( 24 1/4" )
Net Weight
665kg
Gross Weight
775kg
Machine Size ( L x W x H )
1200 x 1000 x 1300mm
Packing Size ( L x W x H )
1300 x 1100 x 1450mm
Various cutters to choose for hard wood and soft wood.
Precise spindle. Micro adjust spindle height when cutter height is different.
Adjustable height of switch box.
