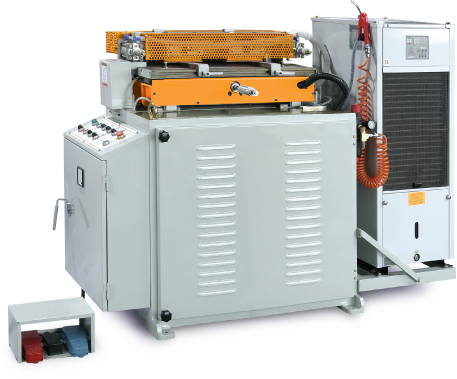

The most popular model. Unceasing improvement and design based on users' suggestion. Stable, long-lasting, with excellent processing efficiency.
Compared to single spindle tenoner, T1 is multi-spindles, and finishs a circle within 15 seconds, making 8-24 pcs of tenon and mortise.
The spindle rotation is 7500RPM under temperature control with cooling cycle system. The speed is so high that it can process soft or loose wood material for high-quality dovetail.
Simple operation with only one button. In automatic model, user needs only one button to finish the procedure without any practice.
V-Belt transmission for less noise, low heat-conduction and easy replacement.

Centralized oiling system easy for maintenance. Convenient, fast time saving. Avoiding indirect injury to guideway in unobvious places.

Concealed super thin & powered cylinder.

Cooling cycle system keeps bearing lubricated under temperature control of cycle oil, maintaining the service life and function for lasting running.
Option N
Option S
Main Spindle in same direction. All cutters turn in same direction. If working stocks are plywood or unstable wood materials, we suggest users take this option for perfect tails.

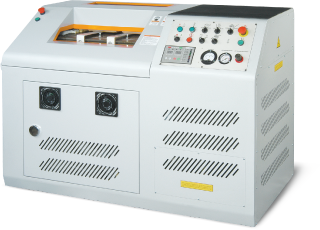

Full cover. Cooling plate and control buttons are in one area.
MODEL
T1-8
T1-16
T1-24
Main Motor
5 HP
7 1/2 HP
10HP
Blade Quantity
8pcs
16pcs
24pcs
Cutter Speed
7500RPM
7500RPM
7500RPM
Working Range
3/8"~1"
3/8"~1"
3/8"~1"
Max Width of Working Piece
210mm ( 8 1/4" )
412mm ( 16 1/4" )
616mm ( 24 1/4" )
Net Weight
565kg
585kg
750kg
Gross Weight
645kg
670kg
890kg
Machine Size ( L x W x H )
760 x 1370 x 1000mm
760 x 1430 x 1080mm
1570 x 760 x 1180mm
Packing Size ( L x W x H )
870 x 1570 x 1350mm
870 x 1570 x 1350mm
1760 x 870 x 1350mm
Various cutters to choose for hard wood and soft wood.
The design of main spindle box for high speed rotation and continuous working. Precision casting. Insistence on Japanese NSK bearings. The cooling cycle system keeps delicate gears & bearings from injury even under high speed rotation & long-time working. Main spindle box is always lubricated well. The quality & durability will stand the test of time.
